Description
DETAILED SPECIFICATIONS
GENERAL SPECIFICATIONS

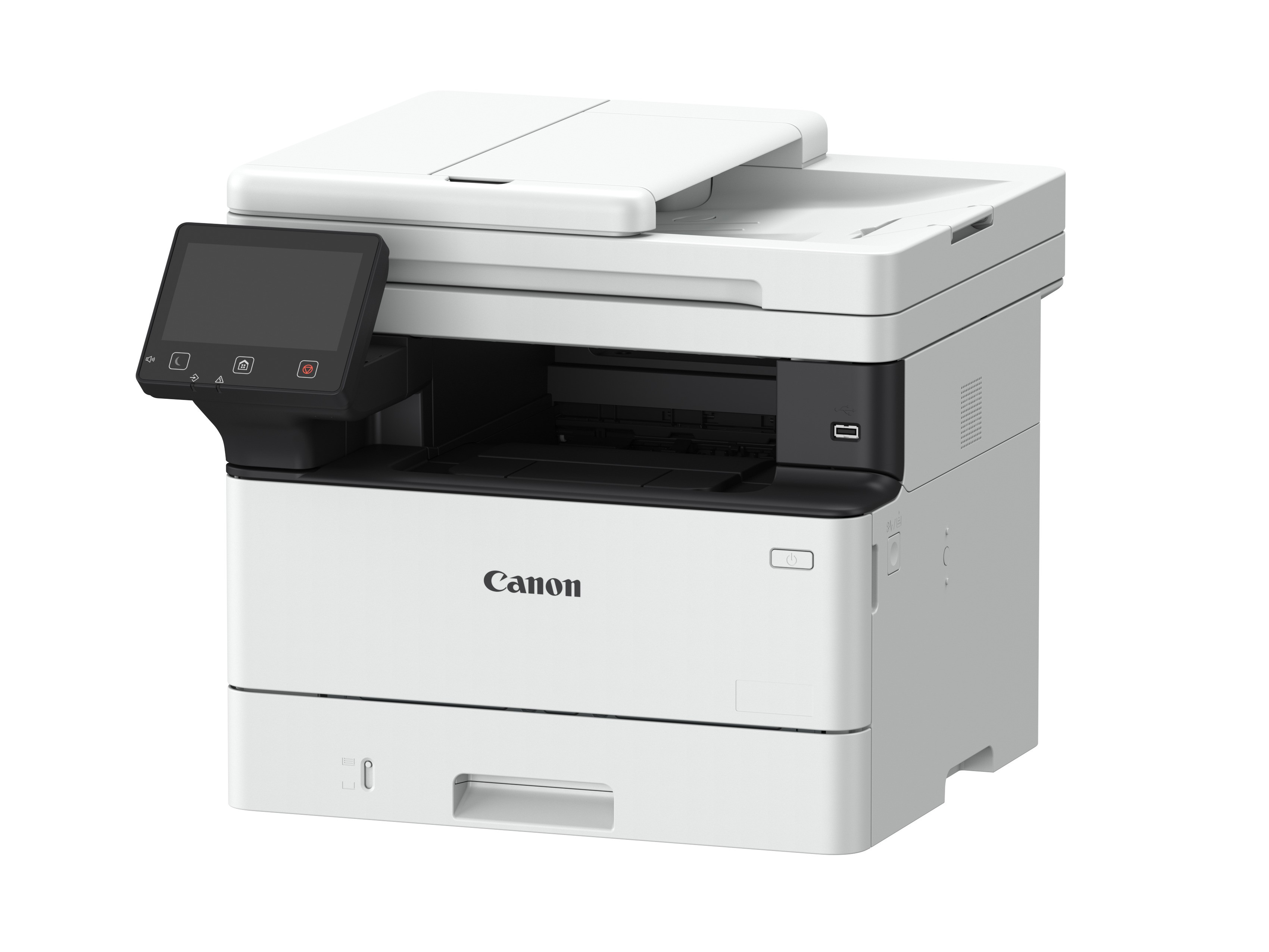

Device Type: Monochrome Laser Multifunction Device
Available Functions: Printing, Copying, and Scanning
PRINT SPECIFICATIONS
Print Speed:
Single-sided: up to 36 pages./min (A4), up to 58.8 pages./min (A5 – landscape)
Double-sided: up to 30.2 ipm./min (A4)
Printing method: Black and white laser printing
Print resolution: Up to 1,200 × 1,200 dpi
Warm-up time: Approx. 14 seconds or less from power on
First Print Out Time: Approx. 5.0 s or less
Printer Languages: UFRII, PCL 5e, PCL6, Adobe® PostScript3
Fonts:
45 PCL fonts
136 PostScript fonts
Print Margins:
5 mm top, bottom, left, and right
10 mm top, bottom, left, and right (envelopes)
Toner Saver Mode: Yes
Advanced Print Features:
Encrypted Secure Print
Secure Print
Print from USB Memory (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, Google Drive, OneDrive) (PDF/JPEG)
Microsoft Universal Print
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon PRINT Business app, Canon Print Service plug-in
COPY SPECIFICATIONS
Copy Speed:
Single-sided (A4): up to 36 ppm/min
Duplex (A4): up to 30.2 ipm./min
First Copy Out Time: Approx. 6.1 seconds or less
Copy Resolution: Up to 600 × 600 dpi
Copy Modes: Text, text/photo (default), text/photo (high quality), photo
Duplex Copying: Duplex to duplex (automatic)
Multiple Copies: Up to 999 copies
Reduction/Enlargement: 25% to 400% in 1% increments
Additional Features: Frame erase, collation, 2 on 1, 4 on 1, ID card copying
SCAN SPECIFICATIONS
Standard Type: Color
Scan Resolution:
Optical: up to 600 × 600 dpi
Enhanced: up to 9,600 × 9,600 dpi
Scan Speed:
Single-sided black and white: 50 ipm/min (300 × 300 dpi)
Single-sided color: 40 images./min (300 × 300 dpi)
Double-sided black and white: 100 pages./min (300 × 300 dpi)
Double-sided color: 80 images./min (300 × 300 dpi)
Single-sided black and white: 40 images./min (300 × 600 dpi)
Single-sided color: 20 images./min (300 × 600 dpi)
Duplex black and white: 80 images./min (300 × 600 dpi)
Double-sided color: 40 images./min (300 × 600 dpi)
Color Depth Scanning: 24 bits / 24 bits (input/output)
Grayscale: 256 levels
Compatibility: TWAIN, WIA, ICA
Maximum Scanning Width: 216 mm
Scan to Email: TIFF / JPEG / PDF / Compact PDF / Searchable PDF
Scan to Computer: TIFF / JPEG / PDF / Compact PDF / Searchable PDF
Scan to USB Memory Device: TIFF / JPEG / PDF / Compact PDF / Searchable PDF
Scan to FTP: TIFF / JPEG / PDF / Compact PDF / Searchable PDF
Scan to Cloud: TIFF/JPEG/PDF/PNG
iFAX: ITU-T.37
MEDIA HANDLING
Scanner type: Scanner glass, duplex automatic document feeder (single-pass)
Paper input (standard):
250-sheet tray
100-sheet multipurpose tray
50-sheet automatic document feeder
Paper input (optional): 550-sheet tray
Maximum paper input capacity: 900 sheets
Paper output: 150 sheets
Media types: Plain paper, recycled paper, thick paper, thin paper, label, postcard, envelope
Media sizes:
Tray (standard and optional):
A4, A5, A5 (landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, custom sizes: minimum 105 × 148 mm to maximum 216.0 × 355.6 mm.
Multipurpose Tray:
A4, A5, A5 (landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, index card, envelope (COM10, Monarch, C5, DL), custom sizes: minimum 76.2 × 127 mm to maximum 216.0 × 355.6 mm.
Automatic Document Feeder (ADF):
A4, A5, A6, B5, Legal, Letter, Statement, custom sizes: minimum 105 × 128 mm to maximum 215.9 × 355.6 mm
Media Weights:
Tray (standard and optional): 60 to 120 g/m2
Multipurpose tray: 60 to 199 g/m2
Automatic document feeder: 60 to 120 g/m2
Duplex Printing:
A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size: minimum 210 × 279.4 mm to maximum 216.0 × 355.6 mm
60 to 120 g/m2
INTERFACE AND SOFTWARE
Interface Type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wi-Fi – 802.11b/g/n, wireless direct connection
Operating System Compatibility:
Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.13 and above
Linux
Network Protocol:
Printing:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scanning:
Device-driven scanning: file: FTP (TCP/IP), SMB3.0 (TCP/IP)
E-mail/I-Fax: SMTP (sending), POP3 (receiving)
Computer-controlled scanning: TCP/IP
Management:
SNMPv1, SNMPv3 (IPv4, IPv6)
Security:
TLS1.3, IPSec, IP Address Filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless connection):
Infrastructure mode:
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
Access point mode:
WPA2-PSK (AES)
Software and Printer Management:
MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: server software for centralized management of a group of devices
eMaintenance: Built-in RDS allows for remote eMaintenance services such as meter reading status, automatic consumables management, and remote diagnostics
Application Library
GENERAL FEATURES
Recommended Monthly Print Volume: 750 to 4,000 pages per month
Duty Cycle: Up to 80,000 pages per month
Processor Speed: 1,200 MHz
Memory: 1 GB
Storage: 4GB eMMC
Control Panel: 12.7 cm color LCD touchscreen
Dimensions with trays (W × D × H): 420 mm × 460 mm × 375 mm
Installation Space (W × D × H): 689 mm × 1,081 mm × 824 mm
Weight: Approx. 16.3 kg
Operating Environment - Temperature: 10 to 30 °C
Operating Environment - Humidity: 20 to 80% RH (non-condensing)
Power Supply: 220–240 V (±10%), 50/60 Hz (±2 Hz)
Power Consumption:
Maximum: approximately 1,280 W
During printing: approximately 480 W
Standby mode: approximately 8 W
Sleep mode: approximately 0.9 W
Typical Electricity Consumption (TEC): 0.31 kWh/week (230 V)
Noise Levels:
Sound Pressure:
In operation: single-sided printing 53 dB / double-sided printing 52 dB
Standby mode: silent
Sound Power:
In operation: double-sided printing 68 dB / single-sided printing 66 dB
Standby mode: silent
CONSUMABLES
Cartridges:
Cartridge 070 (3,000 pages) - included
Cartridge 070H (10,200 pages)
ACCESSORIES
Paper Feeder Unit AH1 (550-sheet tray)
! The USB connecting cable is not included in the package !
