Description
A large-format, compact, and sustainable 24" desktop printer with a built-in A4 flatbed scanner offers versatile features and professional quality for small offices in the architecture, engineering, and construction sectors, retail, hospitality, or education, regardless of budget and space constraints.
*Flatbed Scanner A4: 1,200 × 2,400 dpi
*Compact Size: 968 × 533 × 245 mm
*Tilting Control Panel: Better visibility at all heights

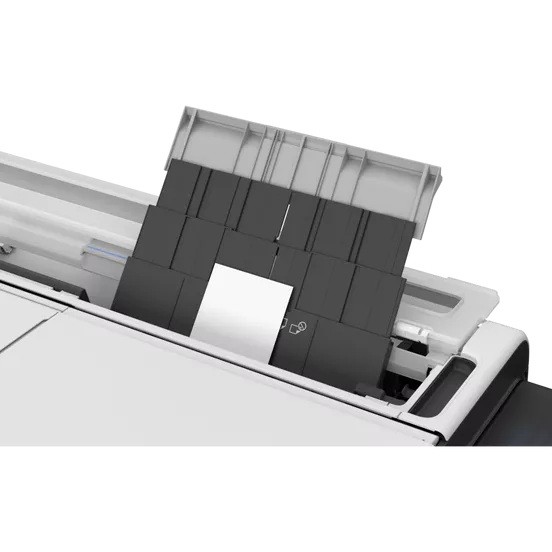

*Built-in Automatic Sheet Feeder: Supports various cut sheet sizes.
Scanner Technology:
Scanning Technology: Flatbed Color CIS Scanner
Maximum Resolution (dpi): Main Scanning X Sub Scanning: 1,200 × 2,400 dpi
Scanning Depth (Input/Output): Color: 16-bit / 8-bit for each RGB component, Grayscale: 16-bit / 8-bit
Line Scanning Speed: Color: 3.5 ms/line at 300 dpi, Grayscale / Monochrome: 1.5 ms/line at 300 dpi
Maximum Document Size: A4/LTR (216 × 297 mm)
Printer Technology
Printer Type: 24 inches, 4 colors
Printing Technology: Canon Pigment Ink, 4 colors, integrated type (4 chips per print head × 1 print head)
Resolution [DPI]: 2,400 × 1,200 dpi
Number of Nozzles: Total: 4,352 nozzles BK: 1,280 nozzles C, M, Y: each with 1,024 nozzles
Nozzle Position: 1,200 dpi × 2 lines
Ink Tank Capacity: Basic ink amount included in delivery: 280 ml (70 ml × 4 for BK, C, M, Y), Sold ink tanks: 70 ml (BK, C, M, Y)
Ink Type: Pigment Inks: 4 colors BK / C / M / Y
Operating System Compatibility:
*32-bit versions: Windows 7, Windows 8.1, Windows 10
*64-bit versions: Windows 7, Windows 8.1, Windows 10, Windows 11
*Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022, 2025
*Apple Macintosh: macOS 11.7.10 to macOS 14.15
Other supported job submission protocols: Apple AirPrint, Mopria, Chrome OS
Standard interfaces:
*USB A port: USB memory device (direct print) – PDF/JPEG (Exif version 2.2/2.21/2.3)
*USB Type B port: high-speed USB
*Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3 (10BASE-T)
*Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b/IEEE802.11a/IEEE802.11ac
Memory: 1GB, Expansion Slot: No
Print Speed:
CAD Drawings
*Plain Paper (A1, Black & White): 0:30 (Standard Mode)
*Plain Paper (A1, Color): 1:00 (Standard Mode)
Posters
*Plain Paper (A1): 1:01 (Draft), 1:51 (Standard)
*Coated Paper (A1): 2:42 (Draft), 4:23 (Standard)
Media Handling and Output:
*Roll Paper: One Roll, Front Loading, Front Output
*Cut Sheets: Automatic Sheet Feeder
Media Width:
*Roll Paper: A3, A2, A2+, A1, B2, B3, 18", 24", 17"
*Cut Sheets: A3, A4, A5, A6, B4, B5, B6, C4, Ledger, Letter, Legal, Foolscap, Executive, ARCH A, Photo (10" × 12", 10" × 15", 8" × 10", 7" × 10", 5" × 7", 4" × 6"(KG), 2L, L), Envelope (COM 10, DL, C5, Monarch), B-Oficio, M-Oficio, User-Defined Paper Size (Width: 89 mm to 297 mm, Length: 127 mm to 1,200 mm)
Media Thickness: Roll/Sheets: 0.08–0.28 mm
Minimum Printable Length: Roll Paper: 203.2 mm, Cut Sheets: 127 mm
Maximum Printable Length: Roll Paper: 4 m, Cut Sheets: 1,200 mm
Maximum Roll Media Diameter: 110 mm
Roll Core Size: Roll Core Inner Diameter: 2"
Power Supply: 100 to 240 V AC (50–60 Hz)
Power Consumption:
*Operation: Approximately 28 W
*Sleep Mode: Approximately 2.3 W
*Default Sleep Mode Transition Time: Approximately 5 minutes
*Off: Approximately 0.07 W
Package Contents:
Printer, 1 Print Head, Power Cable, 1 Set of Starter Ink Tanks, Setup Guide, Safety and Environmental Information, Large Format Printing Address Sheet in Europe, PosterArtist WEB US/EU Software Notice, Sensor Area Protective Material Sheet
