Virtuos EHE0006 CCD 2D scanner HT-855A, RS-232, stand, black

The Virtuos HT-855A is a compact and powerful CCD barcode scanner that can decode both one-dimensional (1D) and two-dimensional (2D) codes.

This universal scanner is an ideal solution for modern retail, pharmacies, restaurants, and warehouses, where fast and reliable product identification is essential.

Thanks to advanced technology, the scanner can read codes not only from paper, but also from mobile phone displays, making it ready for reading ePrescriptions and mobile payments.The device uses a sensitive camera sensor with a resolution of 640 x 480 pixels and a 32-bit ARM processor, which ensures a reading speed of up to 60 frames per second.

The scanner is capable of decoding even difficult-to-read, blurred, crumpled codes with low contrast or high density.

It also excels at reading Czech characters in UTF-8 encoding directly from text stored in 2D codes.

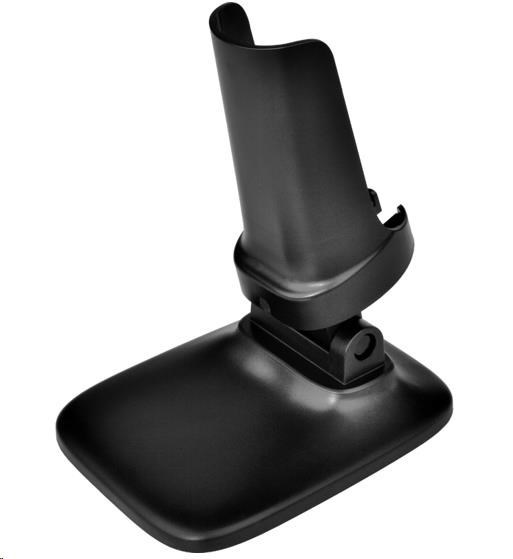

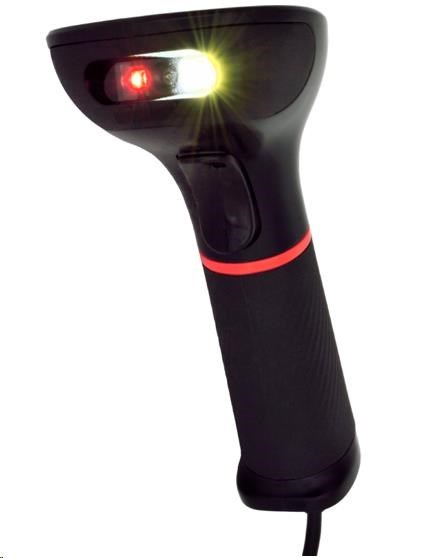

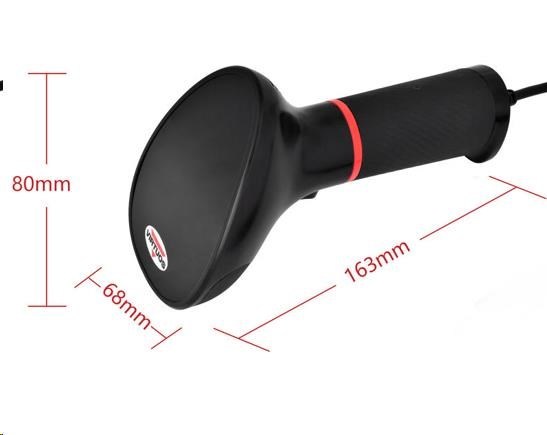

Precise code targeting is ensured by a red indicator stripe, which enables reliable reading even from multiple codes placed next to each other.Key features and product parameters:Sensor type: CCD (CMOS camera 640x480 px)Decoded 1D codes: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 128, GS1 DataBar, and othersDecoded 2D codes: QR Code, Micro QR, Data Matrix, PDF417, Aztec CodeConnectivity: RS-232 serial interface (DB9 connector)Reading field width: 6 to 36 cm (for 13 mil PCS 90%)Reading angle: 65° horizontally, 60° verticallyMaximum ambient light: Up to 100,000 lux (sunlight)Dimensions: 68 x 163 x 80 mmWeight: 185 gMaterial: ABS plastic and thermoplastic polyurethaneProtection rating: IP30Power supply: 3.6 - 5.5 V DC (via DC connector)Cable length: 1.45 mIndication: Audible and visual (white LED for illumination, red for aiming)The scanner is supplied with a stand that allows switching between manual mode and automatic reading mode.

Audible and visual indication confirms successful code reading, increasing operator comfort.

The device is compatible with Windows 7/8/10, iOS, Android, and Linux systems.

For power supply, it is necessary to add a suitable 5V/2A power adapter or use a USB to DC connector adapter.

The operating temperature ranges from -10 to 50 °C, ensuring reliable operation in standard warehouse and retail conditions.
