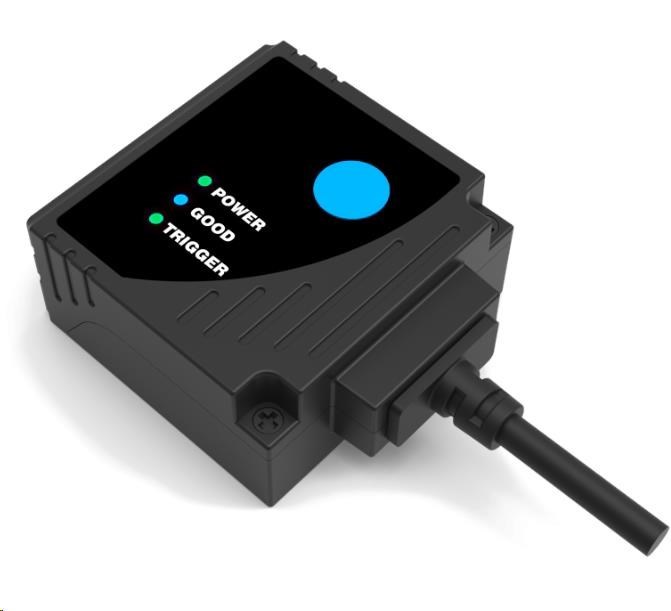

Virtuos EHE0021 CCD 2D scanner HM-755A, module, USB

The HM-755A embedded reader module from the manufacturer Virtuos is designed for professional integration into automated systems, kiosks, and industrial equipment.

This compact CCD 2D scanner module enables reliable scanning of both one-dimensional (1D) and two-dimensional (2D) barcodes.

Thanks to its robust design and high sensor sensitivity, it is an ideal solution for applications where fast and accurate identification of products, payments, or data carriers is required in demanding environments.The module features a CMOS camera sensor with a resolution of 640 x 480 pixels and a 32-bit ARM processor, ensuring a reading speed of up to 60 frames per second.

The scanner is capable of decoding even difficult-to-read codes that are blurred, crumpled, have low contrast, or are placed on transparent packaging and displays.

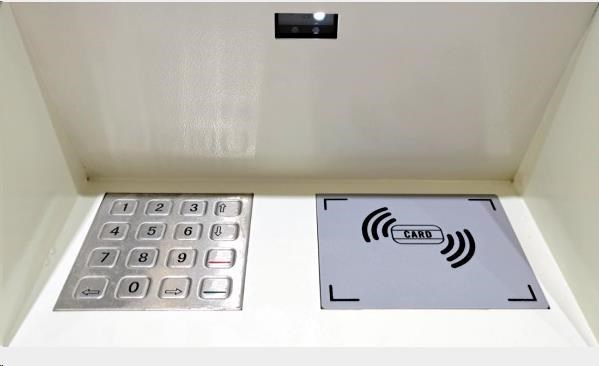

High sensitivity for reading 2D codes from mobile phones makes this module a ready-made solution for modern mobile payments and the digitalization of services.Key features and parametersConnectivity: USB interface with the option to emulate both a keyboard and an RS232 serial port.Placement: Optimized for kiosks, vending machines, and embedded systems.Dimensions: 43.4 (W) x 19.2 (H) x 45.7 (D) mm, weight only 90 g.Housing: Aluminum alloy with IP54 protection, resistant to dust and splashing water.Supported 1D codes: Code128, EAN 8/13, UPC-A/E, Code39, GS1 DataBar, and more.Supported 2D codes: QR Code, Micro QR, Data Matrix, PDF417, Aztec Code.Operating temperature: -10 to 60 °C, humidity 5 to 95% (non-condensing).Light source: White LEDs for illumination and red LEDs for aiming.Reading angle: 65° horizontally and 60° vertically.Compatibility: Windows 7/8/10/11, iOS, Android, Linux.The reader is equipped with audible and visual indicators of successful reading, which facilitates user interaction in kiosk applications.

Automatic code detection and the ability to easily program using barcodes simplify deployment and maintenance.

The length of the connecting cable is 1.7 meters with a USB connector, allowing flexible installation.

The module operates at a voltage of 5 V with an operating current of 178 mA and an idle current of 52 mA, ensuring energy efficiency.

Thanks to support for Czech characters in UTF-8 encoding, it is also suitable for local applications and documentation.

This module represents a reliable and versatile solution for anyone who needs to integrate barcode reading into their own devices, with an emphasis on quality, speed, and durability.
