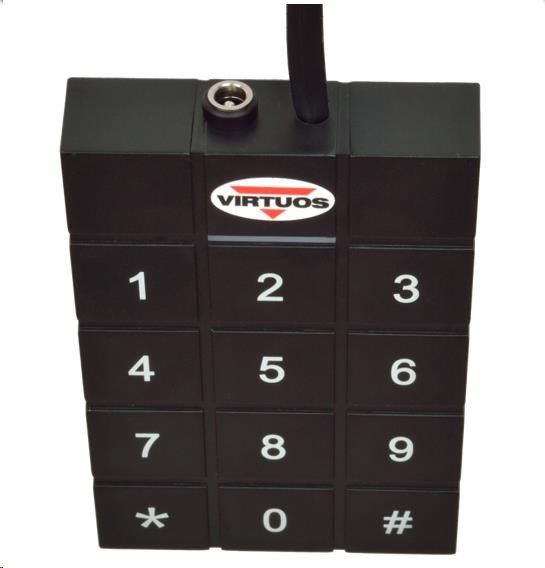

Virtuos EVA0010 RFID 125 kHz adapter with keypad for cash drawers 24V

Simplify and enhance the security of cash drawer management with the Virtuos EVA0010 adapter.

This specialized terminal is designed for direct control of 24 V-powered cash drawers, allowing staff to open the drawer without needing access to the main cash register system or PC.

Thanks to the combination of 125 kHz RFID technology and an integrated numeric keypad, you get a flexible and reliable access control method that is ideal for shops, restaurants, or other commercial premises where speed and security are important.The adapter boasts a robust vandal-resistant construction and a waterproof design with IP65 protection, ensuring a long service life even in demanding operating environments.

The device can be screwed to a wall or worktop, minimizing the risk of theft or damage.

The integrated speaker and colored LEDs (red, orange, green) provide immediate visual and audible feedback on the operation status, while the system monitors for an open drawer and triggers an alarm if necessary.

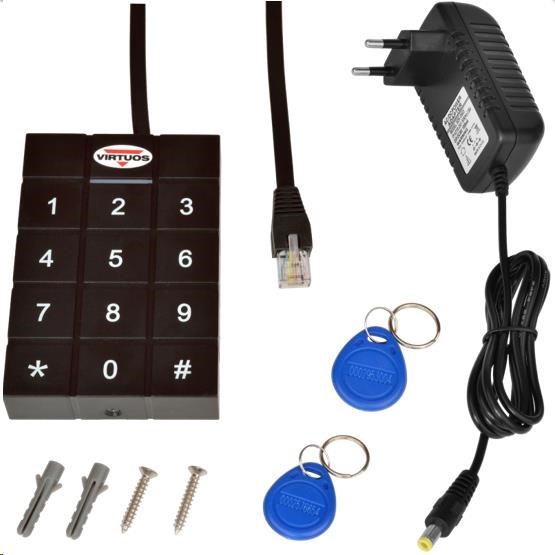

Fast response under 20 ms and low idle power consumption of only 30 mA ensure efficient and smooth operation without unnecessary delays.Control of the cash drawer using an EM 125 kHz RFID card or by entering a four-digit PIN codeSupport for up to 2000 access codes or cards with the option of enhanced security by combining a PIN and cardRobust vandal-resistant design with IP65 waterproof protection for use in demanding environmentsIntegrated alarm monitoring an unclosed cash drawerWiegand 26 input for connecting an additional reader and output for external controllersEasy programming and access management directly via the integrated keypadWide operating temperature range from -20 to 55 °CNet weight 0.35 kg and compact dimensions 75 x 114 x 20 mmThe package includes a complete set for quick deployment: the RFID adapter with keypad itself, a 24V power supply with indicator LED, two RFID chips, installation screws with wall plugs, and a basic installation manual.

The 2-meter connection cable is terminated with an RJ50-10p10c connector, which is directly compatible with Virtuos cash drawers, eliminating the need for additional extension cables.

For cash drawers with a permanently installed cable, the adapter can be connected using the GJB1029 coupler.

This adapter is an ideal accessory for cash register systems, terminals, and PDAs where independent and secure cash drawer management is required.
